TIG Welding - Tips and Trick

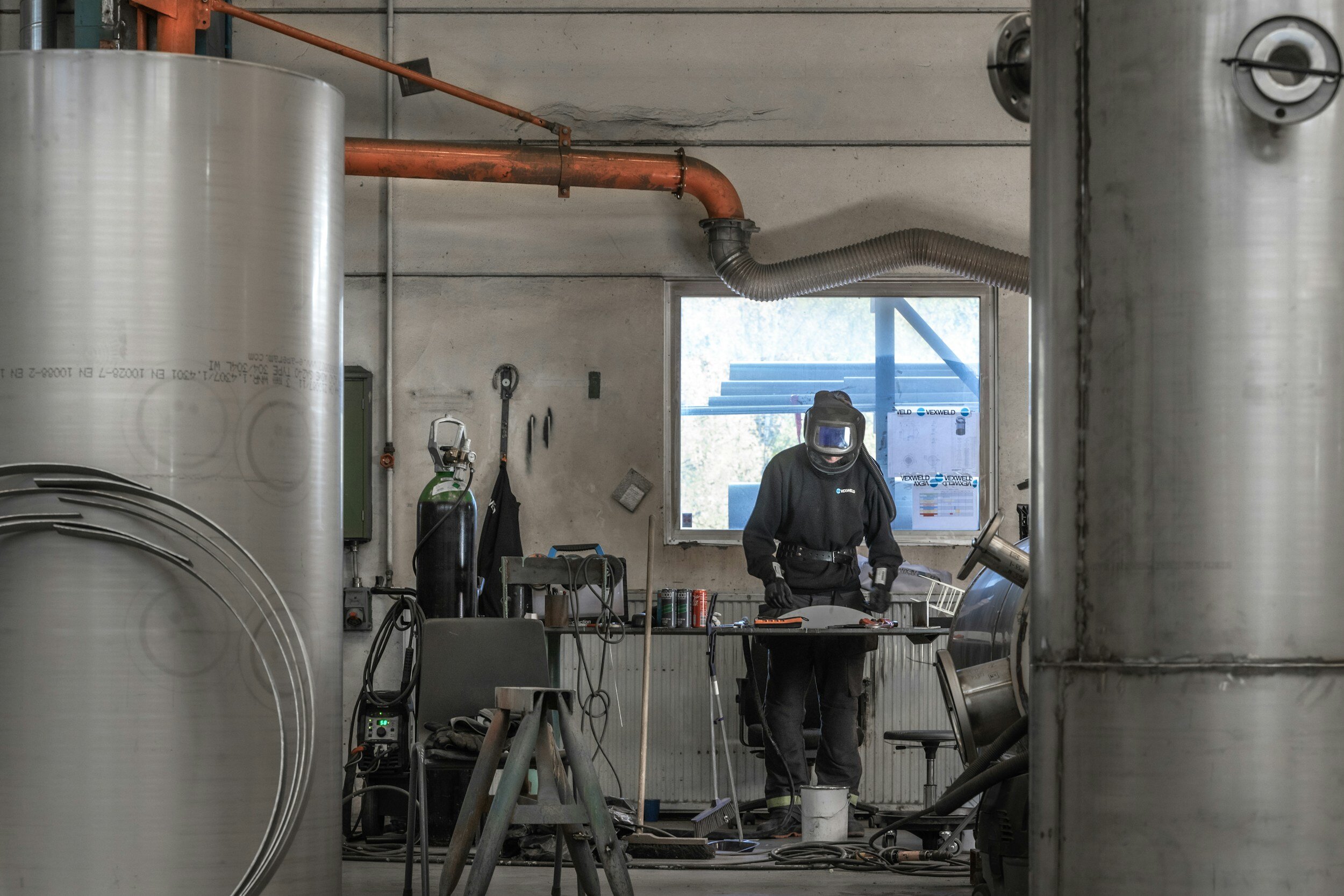

Figure 1: AWS-certified aerospace TIG welder welding high-pressure tubing in a standing 1G position.
Tungsten Inert Gas (TIG) welding stands out as a meticulous and intricate process that demands a high level of precision and control. This welding technique, known for its demanding nature, requires the welder to juggle multiple variables simultaneously. The path to becoming an adept TIG welder lies in effectively managing these variables to produce high-quality welds consistently.
In this blog post, we will delve into a comprehensive guide outlining ten prevalent TIG welding issues along with strategic tips to overcome them. Implementing these solutions will not only enhance your TIG welding proficiency but also elevate you beyond the novice level. Let’s embark on this journey to refine your TIG welding skills.
Table of Contents:
Do a Practice Run
Optimal Amperage is Key
Only Weld on Clean Metal
Proper Hand Feeding Techniques
Choose High-Quality TIG Welding Gloves
Selecting the Right Type of Tungsten
Get Comfortable
Support Your Hands
Maintain the Correct Torch Angle
Use Clean Electrodes
“The most important thing for adult learning is ignoring the frustration of being bad at something.”
Do a Practice Run
If you're stepping into the world of TIG welding, a technique known for its detail and the need for a steady hand, starting with a practice run can really make a difference. Think of it as a warm-up exercise, not just for getting to know your tools but also for getting your moves right before the real action begins. This isn't just a tip for beginners; even pros do it to make sure they're ready to go.
Why bother with a practice run? Well, it helps you get comfortable and find the best position to work from. Just a small tweak in how you stand or hold your torch can make a big difference. It can mean less tiredness and more control, leading to better welds. Plus, practicing like this helps build 'muscle memory.' That means your body remembers how to move, making things smoother when you're actually welding.
In the world of TIG welding, where precision is everything, being relaxed and in control can really affect the outcome. By doing a practice run, you're setting yourself up for success. You'll find it easier to keep your hand steady and your welds neat. This step shows you're serious about doing quality work. It's about laying a strong foundation and moving beyond beginner mistakes.
Adding practice runs to your routine shows dedication to your craft. In industries where TIG welding is key, like making or fixing things with metal, such attention to detail sets you apart. It's not just about joining metal pieces; it's about mastering a skill that demands the best you can give. So, before you dive into your next welding project, remember that a little practice can go a long way in making your work shine.
Figure 2: Aerospace welder Jimmy Nilson comparing the weld size to a gauge that determines the acceptance criteria of the weld, according to AWS D17.1.
Optimal Amperage is Key
A fundamental aspect of TIG welding is setting the correct amperage.
Beginners often make the mistake of setting the amps too low to avoid overheating the base metal, inadvertently causing more heat due to prolonged welding times.
Remember, heat correlates with time, not amperage. A simple formula to determine the right amperage is to measure the base metal's thickness in inches, use 1 amp per 0.001 inch of thickness, and then reduce this number by 10%. This method ensures adequate penetration without overheating.
Use this simple formula to dial in the right amount of amps:
1 amp for every 0.001 inch of thickness. Then, you back off just a bit, taking 10% off to land on the optimal setting. For instance, if your metal is 0.0625 inches thick, you calculate 62.5 amps (since 0.0625 times 1000 equals 62.5) and then reduce it by about 6.25 amps for that 10%, winding up with roughly 56 amps.
This strategy lets you weld at the right pace—fast enough to penetrate the metal properly without overheating it.
It's crucial for anyone looking to up their TIG welding game. By mastering the right amperage, you ensure your welds are strong and clean. Finding that balance with amperage is key to crossing the finish line with a job well done.
Only Weld on Clean Metal
In TIG welding, working on clean metal is non-negotiable for achieving a stable arc and a high-quality weld.
Before initiating the welding process, it's imperative to ensure that the metal surface is free from any contaminants like oil, grease, and dirt.
These impurities can cause the arc to wander or create defects in the weld, compromising its integrity and strength.
The cleaning process involves several key steps:
First, a solvent such as acetone should be used to thoroughly clean the surface of the metal. This step is crucial for removing oily residues and other surface contaminants.
After applying the solvent, it's important to wipe the metal down with a lint-free cloth, ensuring that the surface is completely dry and that the solvent has fully evaporated.
The next step is to use a stainless-steel wire brush to remove any surface oxides from the metal. This is particularly important for materials like aluminum, which tend to form a thin oxide layer that can impede the welding process. It's essential to use a clean brush that's dedicated to the specific type of metal you're working with to avoid cross-contamination. Brushing should be done in one direction to create a uniform surface that's ready for welding.
Finally, a final wipe with a clean cloth dampened with solvent can help remove any residual metal dust or particles, ensuring the metal is in the best possible condition for welding.
This meticulous cleaning process is critical for creating a stable arc and achieving strong, clean welds in TIG welding.
“In TIG welding, the difference between good and great lies in the attention to detail. It’s not just about melting metal together; it’s about creating something strong and beautiful with precision and patience”
Proper Hand Feeding Technique
In TIG welding, feeding the filler rod into the weld pool correctly is crucial for achieving a strong and durable weld.
It's important to remember that the weld pool, not the arc, is what melts the filler rod. This process requires precision because the filler metal must integrate seamlessly with the molten base metal to create a unified, solid joint.
Keeping the filler rod away from the direct impact of the arc prevents the metal from being improperly melted or incorporated into the weld, which can lead to weak spots or defects.
To ensure a high-quality weld, you should introduce the filler rod at the leading edge of the molten pool. This technique allows the filler material to blend smoothly with the base metal, enhancing the structural integrity of the weld. It’s a delicate balance between adding the filler rod too quickly, which can lead to an excess of material and a messy weld, and adding it too slowly, which can cause the rod to not melt properly or integrate with the base metal effectively.
Mastering the art of feeding the filler rod demands practice and attention to detail. By focusing on the weld pool's behavior and adjusting the speed and angle at which you feed the rod, you can achieve consistent, high-quality welds. This skill is fundamental for TIG welders aiming to produce strong, visually appealing welds across a variety of projects.
Choose High-Quality TIG Welding Gloves
In TIG welding, choosing the right gloves is not just about protection; it's about maintaining precision and control. The process of TIG welding requires a high level of dexterity and sensitivity, as the welder needs to carefully manipulate the welding torch and filler rod. The gloves play a crucial role in this process, as they must protect the hands from heat and sparks while still allowing the welder to feel and control their movements accurately.
The selection of TIG welding gloves should be based on several factors. First, the material and thickness of the gloves are paramount. They should offer sufficient protection against the heat generated during welding but not be so thick that they impede the welder's touch sensitivity. Leather gloves, often made from goat, cow, or pigskin, are popular choices because they strike a good balance between durability, heat resistance, and flexibility.
Another important consideration is the fit and design of the gloves. They should fit snugly around the fingers and palm, allowing for precise movements without slipping or bunching up. Some TIG welding gloves also feature a thinner construction in the finger areas to enhance feel and control, which is critical for guiding the welding rod and maintaining a steady torch hand.
Choosing the right TIG welding gloves is a personal decision that can significantly affect the quality of your welds and overall comfort while welding. With the correct pair, a welder can work for longer periods with better precision and control, improving their welding projects' outcomes.
Figure 3: An aerospace welder, clad in protective gear, stands ready in his tidy workshop. Aerospace parts and tools are neatly organized. The bright lighting highlights his focused demeanor and the precision tools at his workstation, reflecting the high standards of aerospace welding.
Selecting the Right Type of Tungsten
Choosing the correct type of tungsten electrode is a crucial decision in TIG welding, significantly impacting the welding process's efficiency, quality, and outcome.
Tungsten electrodes come in various types, each distinguished by a specific color code that helps welders identify the right electrode for their project.
These electrodes vary in composition, each designed to cater to different welding requirements, including the type of metal being welded, the welding current (AC or DC), and the desired quality of the weld.
The most popular tungsten electrodes include:
Red tungsten (2% thoriated): Traditionally favored for its ability to perform well in DC welding applications, red tungsten is efficient for welding steel, stainless steel, and nickel alloys. However, it contains thorium, making it slightly radioactive and raising health and environmental concerns.
Green tungsten (pure tungsten): Best suited for AC welding, especially with materials like aluminum and magnesium. Green tungsten tends to form a balled tip when heated and is known for its stability in AC welding.
Grey tungsten (2% ceriated): A versatile choice that works well with both AC and DC applications. It's especially useful for welding at low amperages, making it ideal for welding thin metals.
Blue tungsten (2% lanthanated): Known for its ease of arc starting, blue tungsten can be used in both AC and DC applications and is often chosen for its versatility and performance across a range of materials.
Gold tungsten (1.5% lanthanated): Similar to blue tungsten but with a slightly different balance of lanthanum, making it capable of carrying higher currents and suitable for welding thicker materials.
Each type of tungsten electrode has its unique properties and benefits, making the selection process critical to achieving optimal welding results.
The choice of electrode affects the stability of the arc, the ease of arc starting, the weld's appearance, and the potential for weld contamination. For instance, using a ceriated or lanthanated electrode can provide a more stable arc and easier starting at lower amperages, beneficial for precision work on thinner materials.
Conversely, thoriated electrodes, despite their environmental and health concerns, are still chosen for their superior performance in certain applications.
Understanding the characteristics of each tungsten type and matching them to the specific needs of your welding project can significantly enhance your welding efficiency and outcomes. Whether working with delicate sheet metal or robust steel structures, the right tungsten electrode can make all the difference in the quality and consistency of your welds.
Get Comfortable
Finding a comfortable position is essential when it comes to TIG welding. The process requires precision and steadiness, and being comfortable in your welding stance can significantly impact the quality of your welds. Welders often spend long hours working on projects, and discomfort can lead to fatigue, which in turn can affect concentration and hand stability. Ensuring that you are seated or standing in a comfortable position not only helps in producing cleaner and more precise welds but also reduces the risk of strain and injury over time.
Adjusting your welding environment to suit your needs is key. If you prefer to sit while welding, ensure that your chair or stool is at the right height for easy access to your work area without having to hunch over or stretch. If standing is more your style, make sure your stance allows you to move freely and reach all areas of your work without unnecessary bending or twisting. Proper footwear that provides support and comfort for standing on hard surfaces for extended periods can also make a significant difference.
In addition to your body's position, consider the placement of your welding table or workbench. It should be at a height that complements your preferred working stance, allowing your arms to rest comfortably while giving you unobstructed access to your workpiece. The setup of your equipment around your workspace should also be organized in a way that keeps everything you need within easy reach, reducing the need to stretch or move away from your comfortable position.
The aim is to find a setup that allows you to maintain a steady hand and a clear line of sight on your work, without causing discomfort or strain.
By taking the time to adjust your workspace to your personal comfort, you can enhance your welding technique, improve the quality of your work, and enjoy a more satisfying welding experience.
“Mastering the skill of welding, like any trade, is a testament to the blend of precision, patience, and hard work.”
Support Your Hands
Proper hand and arm support is crucial in TIG welding for maintaining precision and stability throughout the welding process. The technique requires a steady hand to control the torch and feed the filler material accurately, making support for your arms or hands not just beneficial, but essential for high-quality welds. Without adequate support, your hands may shake or move involitantly, leading to uneven welds or mistakes that could compromise the strength and appearance of your work.
Finding effective ways to stabilize your hands can involve a variety of setups, depending on your workspace and the specifics of the project. Many welders use support blocks or rests placed strategically around their workbench. These can be made from metal or wood and are used to provide a steady rest for either the torch hand or the hand feeding the filler rod. The height and position of these supports can be adjusted to suit different welding positions and to give you the best angle for both visibility and comfort.
In some cases, especially when working on larger pieces or in awkward positions, welders may use their lap, another part of the workpiece, or even customized armrests to stabilize their arms. This can help in reducing fatigue and maintaining control over the weld pool, particularly during longer welding sessions.
Another technique involves using a TIG finger, a heat-resistant sleeve that fits over your finger or thumb, allowing you to slide along hot surfaces without getting burned. This can be particularly useful when you need to stabilize your hand close to the weld area.
Ensuring that your hands and arms are properly supported will not only improve the quality of your welds but also help in reducing physical strain, allowing you to weld for longer periods with greater comfort and precision. Whether you're working on a small, detailed piece or a large, industrial project, taking the time to set up your workspace with adequate support can make a significant difference in your welding technique and outcomes.

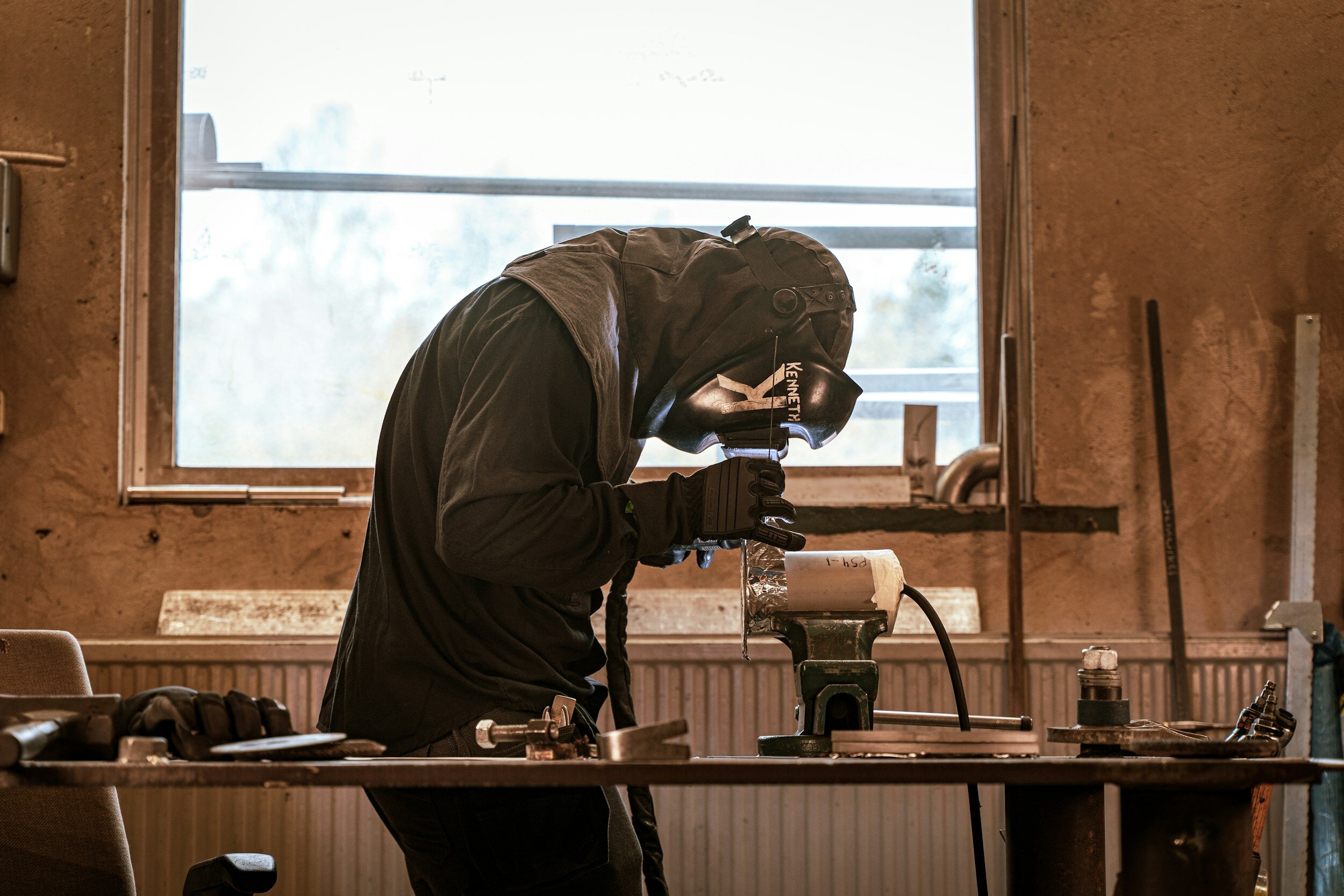

Figure 4: A welder, wearing safety gear, stands ready to work at a table with a welding torch, surrounded by tools and metal parts.
Maintain the Correct Torch Angle
Maintaining the correct torch angle is pivotal in TIG welding, as it significantly affects the quality and appearance of the weld bead. The torch angle refers to the position of the welding torch relative to the workpiece.
Ideally, the torch should be held at a 15 to 20 degree angle from vertical in the direction of travel. This angle facilitates optimal penetration and control over the weld pool, allowing for a smooth and consistent bead.
Holding the torch too perpendicular (straight up and down) can lead to a narrow, deeply penetrating weld that might not adequately fuse the edges of the weld joint. On the other hand, angling the torch too far in any direction can spread the arc and heat too broadly, resulting in a weld that's too wide with insufficient penetration.
The correct angle helps concentrate the arc for proper penetration and directs the heat forward, preheating the metal just ahead of the weld pool and ensuring a strong, uniform joint.
Additionally, the angle at which you hold the torch affects your visibility. Maintaining a slight angle improves your line of sight, allowing you to better see the puddle and the leading edge of the weld. This is crucial for ensuring that the filler material is properly deposited and the weld is forming correctly.
It's also important to consistently maintain the angle as you move along the weld joint. Changes in the torch angle can lead to variations in weld bead appearance and quality. For beginners, practicing maintaining a steady hand and a consistent angle can be as crucial as mastering the settings on the welding machine.
In summary, the torch angle in TIG welding is not just a matter of technique but a critical factor in achieving a high-quality weld. Proper angle and steadiness can mean the difference between a weld that's strong and aesthetically pleasing and one that fails to meet the mark. Like many aspects of welding, it requires practice and attention to detail, but mastering this skill can significantly enhance your welding results.
Use Clean Electrodes
Ensuring the use of clean electrodes is a cornerstone practice in TIG welding, crucial for achieving a stable and precise arc. The integrity of the tungsten electrode directly impacts the quality of the weld, as any contamination can cause the arc to become unstable, wander, or produce inconsistent welds.
Contaminants on the electrode can come from various sources, including touching the filler metal, the weld pool, or even from improper handling and storage.
When the electrode becomes contaminated, it may not only lead to poor weld quality but also decrease the efficiency of the welding process. An unstable arc can make it challenging to maintain the necessary heat input and may result in defects such as porosity or inclusions within the weld. Furthermore, a contaminated electrode can introduce unwanted elements into the weld pool, compromising the metallurgical properties of the weld.
To ensure electrodes remain clean, welders should practice careful handling and storage of their tungsten. This includes avoiding direct contact with the weld pool or filler material and ensuring the electrode doesn’t touch any surfaces that could transfer oil, grease, or other contaminants. Regularly grinding the electrode to a sharp point in a dedicated grinder for tungsten also helps remove any surface contamination and prepares it for optimal arc performance.
Having a set of pre-sharpened electrodes on hand is a good practice, allowing for quick replacement if contamination occurs during welding. This minimizes downtime and ensures the welder can maintain productivity while also adhering to high-quality standards.
In essence, the cleanliness and condition of the tungsten electrode are fundamental to TIG welding success. By prioritizing clean electrodes, welders can achieve more stable arcs, better control over the weld pool, and ultimately, higher quality welds. This attention to detail underscores the skill and craftsmanship that define expert TIG welding.
